AT49BV322AT-70TI

2.7-volt 32-megabit Flash memory, 13.0V, TSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.10~1.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.10~1.30

PartNumber:: AT49BV322AT-70TI

Brand:: ATMEL Corporation - ATMEL | Pack: TSOP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Daisy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-28

From Other Seller

Part Number:AT49BV322AT-70TI
US $1.10 - 1.30
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

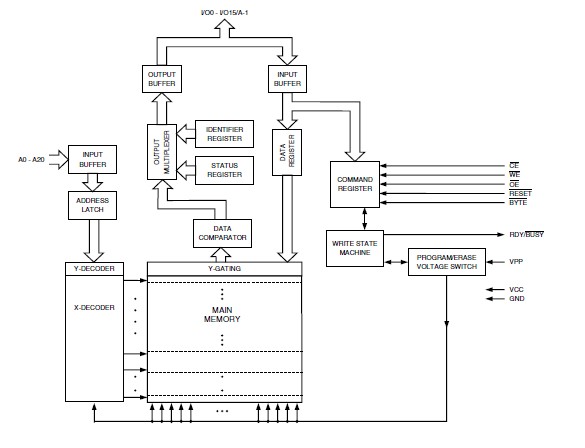

The AT49BV322AT-70TI is a 2.7-volt 32-megabit Flash memory organized as 2,097,152 words of 16 bits each or 4,194,304 bytes of 8 bits each. The x16 data appears on I/O0 - I/O15; the x8 data appears on I/O0 - I/O7. The AT49BV322AT-70TI is divided into 71 sectors for erase operations. The device is offered in a 48-lead TSOP and a 48-ball CBGA package. The AT49BV322AT-70TI has CE and OE control signals to avoid any bus contention. This device can be read or reprogrammed using a single power supply, making it ideally suited for in-system programming.

Parametrics

AT49BV322AT-70TI absolute maximum ratings: (1) Storage Temperature: -65°C to +150°C; (2) All Input Voltages (including NC Pins) with Respect to Ground:-0.6V to +6.25V; (3) All Output Voltages with Respect to Ground:-0.6V to VCC + 0.6V; (4) Voltage on VPP with Respect to Ground: -0.6V to +13.0V; (5) Temperature under Bias: -55°C to +125°C.

Features

AT49BV322AT-70TI features: (1) Single Voltage Read/Write Operation: 2.65V to 3.6V; (2) Access Time 70 ns; (3) Sector Erase Architecture: Sixty-three 32K Word (64K Bytes) Sectors with Individual Write Lockout, Eight 4K Word (8K Bytes) Sectors with Individual Write Lockout; (4) Fast Word Program Time 12μs; (5) Fast Sector Erase Time 300 ms; (6) Suspend/Resume Feature for Erase and Program: Supports Reading and Programming from Any Sector by Suspending Erase of a Different Sector, Supports Reading Any Byte/Word in the Non-suspending Sectors by Suspending Programming of Any Other Byte/Word; (7) Low-power Operation: 12 mA Active, 13 μA Standby; (8) Data Polling, Toggle Bit, Ready/Busy for End of Program Detection; (9) VPP Pin for Write Protection; (10) RESET Input for Device Initialization; (11) Sector Lockdown Support; (12) TSOP and CBGA Package Options; (13) Top or Bottom Boot Block Configuration Available; (14) 128-bit Protection Register; (15) Minimum 100,000 Erase Cycles; (16) Common Flash Interface (CFI).
