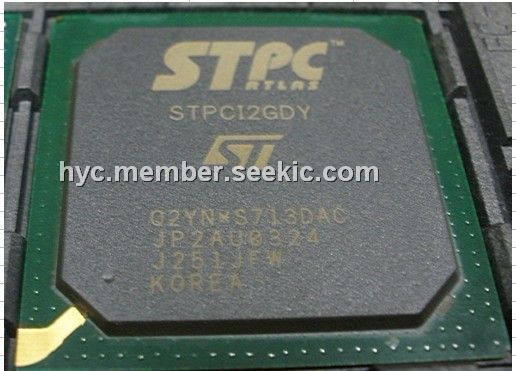

Product Summary

The STPC12GDY is an advanced processor block that includes a powerful x86 processor core along with a 64 bit SDRAM controller, advanced 64-bit accelerated graphics and video controller, a high speed PCI bus controller and industry standard PC chip set functions (Interrupt controller, DMA Controller, Interval timer and ISA bus). The STPC12GDY has in addition, a TFT output, a Video Input, an EIDE controller, a Local Bus interface, PCMCIA and super I/O features including USB host hub.

Parametrics

STPC12GDY absolute maximum ratings: (1)VDDx DC Supply Voltage: -0.3, 4.0 V; (2)VCORE DC Supply Voltage for Core: -0.3, 2.7 V; (3)VI, VO Digital Input and Output Voltage: -0.3, VDD + 0.3 V; (4)V5T 5Volt Tolerance: -0.3, 5.5 V; (5)VESD ESD Capacity (Human body mode): 2000 V; (6)TSTG Storage Temperature: -40, +150 °C; (7)TOPER Operating Temperature (Note 1): 0 +85 °C, -40 +115 °C; (8)PTOT Maximum Power Dissipation (package): - 4.8 W.

Features

STPC12GDY features: (1)video input port; (2)video pipeline: up scaler, video colour space converter, chroma colour key support; (3)tft display controller; (4)pci 2.1 master / slave / arbiter; (5)isa master / slave controller; (6)16 bit local bus interface; (7)pcmcia interface controller; (8)eide controller; (9)2 usb host hub interfaces.

Diagrams

 STPC12GDY block diagram
