Product Summary

The RT9198-33PBR is a 300mA, low noise, ultra-fast CMOS LDO regulator. The RT9198-33PBR is designed for portable RF and wireless applications with demanding performance and space requirements. The RT9198-33PBR performance is optimized for battery-powered systems to deliver ultra low noise and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life. The RT9198/A also works with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications, critical in hand-held wireless devices. The RT9198-33PBR consumes less than 0.01μA in shutdown mode and has fast turn-on time less than 50μs. The other features include ultra low dropout voltage, high output accuracy, current limiting protection, and high ripple rejection ratio. Available in the SOT-23-3, SOT-23-5, SC-70-5, SC-82 and WDFN-6L 2x2 packages, the RT9198/ A also offers a range from 1.5V to 5.0V with 0.1V per step.

Parametrics

RT9198-33PBR absolute maximum ratings: (1) Junction Temperature: 150°C; (2) Lead Temperature (Soldering, 10 sec.): 260°C; (3) Storage Temperature Range: -65°C to 150°C; (4) Supply Input Voltage: 6V; (5) Power Dissipation, PD @ TA = 25°C SOT-23-3/SOT-23-5: 400mW; (6) Power Dissipation, PD @ TA = 25°C SC-70-5, SC-82: 300mW; (7) Power Dissipation, PD @ TA = 25°C WDFN-6L 2x2: 606mW; (8) ESD Susceptibility (Note 2) HBM (Human Body Mode): 2kV; (9) ESD Susceptibility (Note 2) MM (Machine Mode): 200V.

Features

RT9198-33PBR features: (1) Low-Noise for RF Application; (2) Fast Response in Line/Load Transient; (3) Quick Start-Up (Typically 50μs); (4) < 0.01μA Standby Current When Shutdown; (5) Low Dropout : 220mV @ 300mA; (6) Wide Operating Voltage Ranges : 2.5V to 5.5V; (7) TTL-Logic-Controlled Shutdown Input; (8) Low Temperature Coefficient; (9) Current Limiting Protection; (10) Thermal Shutdown Protection; (11) Only 1μF Output Capacitor Required for Stability; (12) High Power Supply Rejection Ratio; (13) Custom Voltage Available; (14) RoHS Compliant and 100% Lead (Pb)-Free.

Diagrams

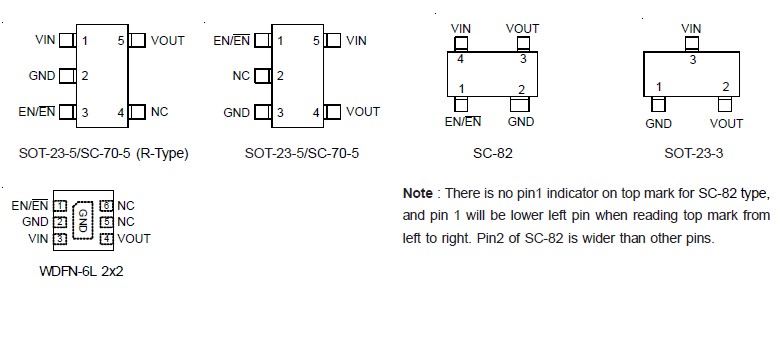

 RT9198-33PBR pin connection
