Product Summary

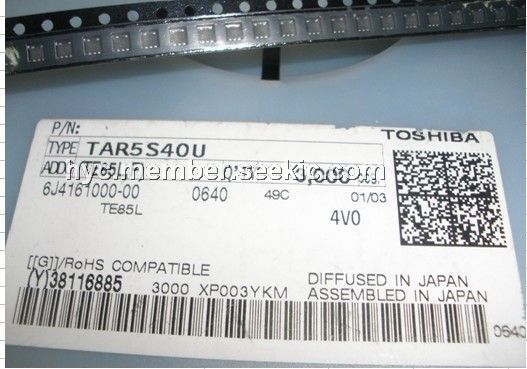

The TAR5S40U is a point regulator incorporating a control pin the TAR5S40U can be used to turn them ON/OFF. Overtemperature and overcurrent protection circuits are built in to the devices’ output circuit.
Parametrics
TAR5S40U absolute maximum ratings: (1)Supply Voltage VIN: 15 V; (2)Output Current IOUT: 200 mA; (3)Power Dissipation PD: 450 (Note)mW; (4)Operation Temp. Range Topr: －40 to 85 °C; (5)Storage Temp. Range Tstg: －55 to 150 °C.
Features
TAR5S40U features: (1)Low stand－by current; (2)Overtemperature/overcurrent protection; (3)Operation voltage range is wide ; (4)Maximum output current is high ; (5)Difference between input voltage and output voltage is low ; (6)Small package (UFV package: Similar toSOT－353); (7)Ceramic capacitors can be used.

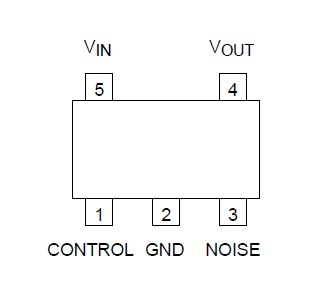

Diagrams
 |
