Product Summary

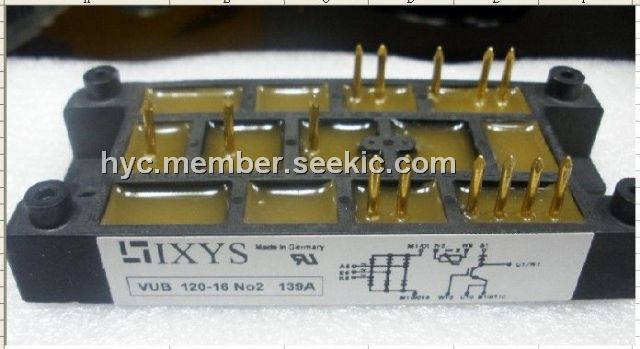

The VUB120-16N02 is a three phase rectifier bridge.

Parametrics

VUB120-16N02 absolute maximum ratings: (1) IFSM Rectifier Diodes TVJ = 45℃, t = 10 ms, VR = 0 V 650: 850A; (2) IFSM Rectifier Diodes TVJ = 150℃, t = 10 ms, VR = 0 V 580: 760A; (3) I2t Rectifier Diodes TVJ = 45℃, t = 10 ms, VR = 0 V 2110: 3610 A; (4) Ptot Rectifier Diodes TC = 25℃ per diode 130: 160 W; (5) ICM IGBT tp = Pulse width limited by TVJM 200: 300 A; (6) Ptot IGBT TC = 25℃ 400: 600W; (7) VRRM Fast Recovery Diode: 1200 V.

Features

VUB120-16N02 features: (1) Soldering connections for PCB; (2)mounting; (3) Isolation voltage 3600 V~; (4) Ultrafast diode; (5) Convenient package outline; (6) UL registered E 72873; (7) Case and potting UL94 V-0; (8) Thermistor.

Diagrams

 VUB120-16N02 pin connection
