Product Summary

The 2908-05WB is a 3M Electronic Solutions Division Memory Card Connector

Parametrics

2908-05WB absolute maximum ratings: (1)Current Rating: 0.5 A; (2)Insulation Resistance: 100 ΜΩ min.; (3)Withstanding Voltage: 500 VAC for one minute.

Features

2908-05WB features: (1)1.85 mm low profile height; (2)Small size of 14.0 mm × 14.2 mm footprint; (3)Smooth push－push eject mechanism; (4)Card is retained when mated; (5)Card polarization; (6)Will accept a card thickness of 0.8 mm; (7)Mechanism prevents card from flying out upon ejection; (8)Card detection indicator; (9)Metal－shielded cover; (10)microSDTM specification compliant; (11)RoHS compliant.

Diagrams

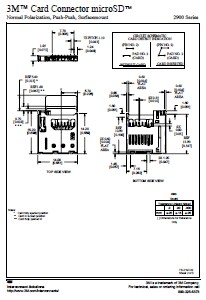

2908-05WB dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
2908-05WB-MG
2908-05WB-MG
3M Electronic Solutions Division
Memory Card Connectors MICROSD 8P P/P SMT POLARIZED
Data Sheet
0-1: $1.45
1-25: $1.31
25-50: $1.20
50-100: $1.06
