Product Summary

The M30800SAGP-BL-U5 is a single-chip 16/32-bit cmos microcomputer. The M30800SAGP-BL-U5 is a single-chip control unit that utilizes high-performance silicon gate CMOS technology with the M30800SAGP-BL-U5 CPU core. The M30800SAGP-BL-U5 is available in 100-pin plastic molded LQFP/QFP package. With a 16-Mbyte address space, this microcomputer combines advanced instruction manipulation capabilities to process complex instructions by less bytes and execute instructions at higher speed. It incorporates a multiplier and DMAC adequate for office automation, communication devices and industrial equipments and other high-speed processing applications.

Parametrics

M30800SAGP-BL-U5 absolute maximum ratings: (1)VCC1, VCC2 Supply Voltage VCC1=AVCC: －0.3 to 6.0 V; (2)VCC2 Supply Voltage: －0.3 to VCC1 V; (3)AVCC Analog Supply Voltage VCC1=AVCC: －0.3 to 6.0 V; (4)Pd Power Dissipation Topr=25° C: 500 mW; (5)Topr Operating Ambient Temperature: －20 to 85/ －40 to 85(1)° C; (6)Tstg Storage Temperature: －65 to 150 ° C.

Diagrams

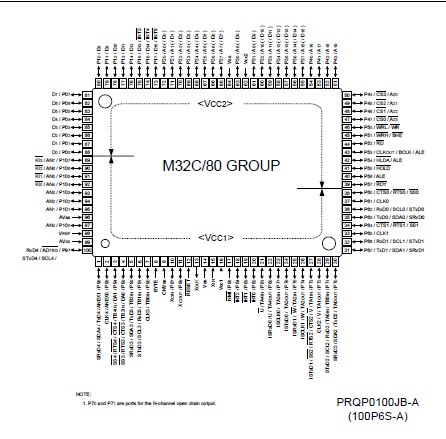

M30800SAGP-BL-U5 pin connection

M30800FCFP#U3
M30800FCFP#U3

MCU 3/5V 128K I-TEMP PB-FREE 100
Data Sheet
0-1: $25.83
M30800FCGP#U3
M30800FCGP#U3

MCU 3/5V 128K I-TEMP PB-FREE 100
Data Sheet
0-1: $25.63
M30800SAFP#D3
M30800SAFP#D3

MCU 3/5V 0K I-TEMP 100-QFP
Data Sheet
Negotiable
M30800SAGP-BL#U5
M30800SAGP-BL#U5

IC M32C/80 MCU ROMLESS 100LQFP
Data Sheet
0-1: $7.39
1-10: $6.72
10-100: $5.71
100-250: $5.21
250-500: $4.87
500-1000: $4.47
1000-2500: $4.28
2500-5000: $4.17
5000-10000: $4.03
