Product Summary

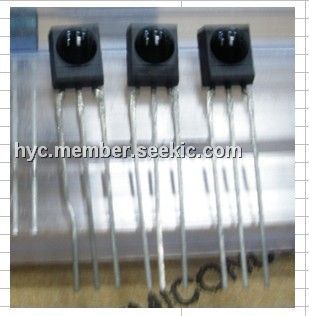

The TSOP34138 is a miniaturized receiver for infrared remote control systems. A PIN diode and a preamplifier are assembled on a lead frame, the epoxy package acts as an IR filter. The demodulated output signal can be directly decoded by a microprocessor. The TSOP34138 is compatible with all common IR remote control data formats. The TSOP34138 is optimized to better suppress spurious pulses from energy saving fluorescent lamps but will also suppress some data signals. This component has not been qualified according to automotive specifications.
Parametrics
TSOP34138 absolute maximum ratings: (1)Supply voltage (pin 3)VS:－0.3 to + 6.0 V; (2)Supply current (pin 3)IS: 3 mA; (3)Output voltage (pin 1)VO: －0.3 to (VS + 0.3)V; (4)Output current (pin 1)IO: 5 mA; (5)Junction temperature Tj: 100 °C; (6)Storage temperature range Tstg: －25 to + 85 °C; (7)Operating temperature range Tamb: －25 to + 85 °C; (8)Power consumption Tamb ≤ 85 °C Ptot: 10 mW; (9)Soldering temperature t≤10 s, 1 mm from case Tsd: 260 °C.
Features
TSOP34138 features: (1)Very low supply current; (2)Photo detector and preamplifier in one package; (3)Internal filter for PCM frequency; (4)Improved shielding against EMI; (5)Supply voltage: 2.5 V to 5.5 V; (6)Improved immunity against ambient light; (7)Insensitive to supply voltage ripple and noise; (8)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TSOP34138 |
Vishay Semiconductors |
Infrared Receivers 2.7-5.5V 38kHz |
Data Sheet |
|
|
||||||||||||
