Product Summary

The MM9329-2700 is a high frequency device.

Parametrics

MM9329-2700 absolute maximum ratings: (1)Frequency: From DC to 6GHz; (2)VSWR: 1.2 max. (DC ~ 3GHz); 1.3 max. (3 ~ 6GHz); (3)Nominal Impedance: 50Ω; (4)Temperature Range: –40°C to +90°C; (5)Voltage: 250Vrms; (6)Contact Resistance: 15mΩmax.; (7)Withstand Voltage: 300(AC)rms; (8)Insulation Resistance: 500MΩmin.; (9)Mating Cycles: 100 cycles.

Features

MM9329-2700 features: (1)High engagement with new structure (50% up compared with ESC type); (2)Ultra-miniature (LxWxH: 3.4x3.4x1.5mm)for high density mounting (11.6mm2); (3)Ultra-low profile (3.0mm max.); (4)SMD and reflow soldering applicable; (5)Taping package applicable; (6)Mountable by automatic placer; (7)High performance (VSWR: 1.2 max. at 3GHz); (8)Matched with ultra-thin FEP coaxial cables (0.8mm dia.).

Diagrams

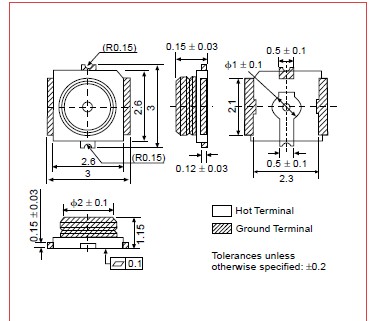

 MM9329-2700 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MM9329-2700B
MM9329-2700B

Murata

RF Connectors 0.015ohm DC to 3GHz

Data Sheet

Negotiable
MM9329-2700RA1
MM9329-2700RA1

Murata

Test Connectors COAXIAL CONNECTOR MS3

Data Sheet

0-1: $0.50
1-25: $0.43
25-100: $0.39
100-500: $0.35
500-1000: $0.32
MM9329-2700RB5
MM9329-2700RB5

Murata

RF Connectors CONNECTOR

Data Sheet

0-880: $1.13
880-4000: $0.28
4000-5000: $0.28
5000-8000: $0.27
MM9329-2700TB1
MM9329-2700TB1

Murata

RF Connectors 0.015ohm DC to 3GHz

Data Sheet

Negotiable
