Product Summary

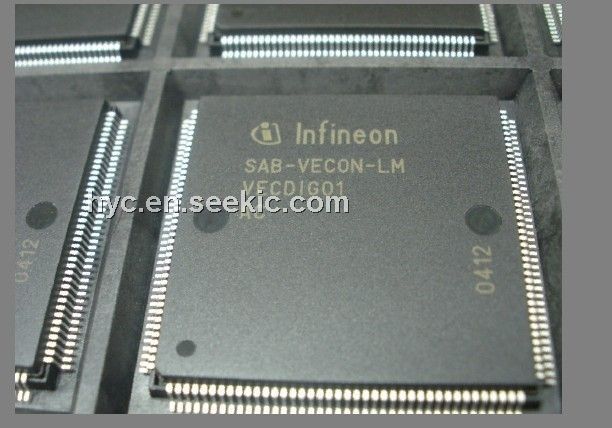

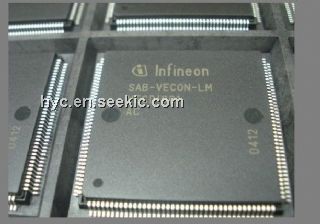

The SAB-VECON-LM is an LCD module.

Parametrics

SAB-VECON-LM absolute maximum ratings: (1)supply voltage: 8V; (2)Supply voltage LCD driver: 16.5V; (3)input voltage: VSS-0.3 to VDD+0.3V; (4)Operating temperature: -20 to 70℃; (5)storage temperature: -30 to 80℃.

Features

SAB-VECON-LM features: (1)supply voltage: 2.7 to 5.5V; (2)Supply voltage LCD: 6.9 to 8.1V; (3)input voltage: VSS+2 to VDDV; (4)Logic supply current: 1.2mA.

Diagrams

SAB-VECON-LM block diagram
