Product Summary

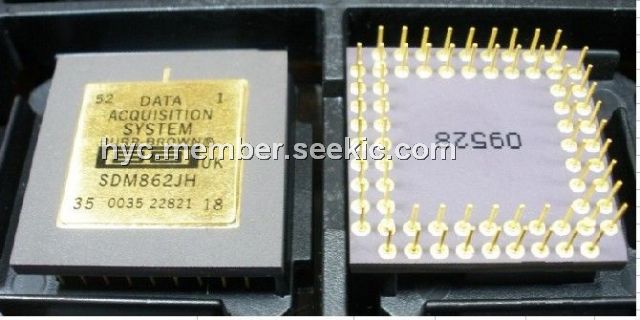

The SDM862JH is a complete, pin-compatible, data acquisition system housed in a hermetically sealed 1 -square leadless chip carrier or a 1.1-square pin grid array. The small package outlines and low power consumption provide an ideal data acquisition solution when space is at a premium. The SDM862JH comprises of an input multiplexer, instrumentation amplifier with selectable gains, sample/hold amplifier and A/D converter with microprocessor interface and three-state buffers. The SDM862JH will accept unipolar or bipolar voltage inputs in the range 0 to +10V, ±5V and ±10V. For lowlevel signals, jumper-selectable gains of 10 or 100 can be applied. The number of input channels can be expanded by the addition of multiplexers. System integration is simplified by the microprocessor interface and the facility of the sample/hold amplifier being controlled directly by the A/D converter.
Parametrics
SDM862JH absolute maximum ratings: (1)+VCC to ACOM : －0.5V to +16V; (2)－VCC to ACOM : +0.5 to －16V; (3)+VDD to DCOM : －0.5V to +7.0V; (4)Analog Input Signal Range : +VCC +20V to －VCC －20V; (5)Digital Input Signal : －0.5V to +VDD; (6)ACOM to DCOM : ±1V.
Features
sdm862jh features: (1)complete 12-bit data acquisition system in a miniature package; (2)input ranges selectable for unipolar or bipolar operation; (3)selectable gains of 1, 10, and 100; (4)full microprocessor compatible interface; (5)guaranteed no missing codes over temperature; (6)surface-mount or pin grid array package options; (7)high reliability screened versions available; (8)full specification over three temperature ranges: 0 to +70℃, －25 to +85℃, －55 to +125℃.
Diagrams
 |
