Product Summary

The SG3525AN is a pulse width modulator integrated circuit designed to offer improved performance and lowered external parts count when used in designing all types of switching power supplies. On-chip + 5.1 V reference of the SG3525AN is trimmed to ± 1 % and the input common-mode range of the error amplifier includes the reference voltage eliminating external resistors. A sync input to the oscillator allows multiple units to be slaved or a single unit to be synchronized to an external system clock. A single resistor between the CT and the discharge terminals provide a wide range of dead time ad- justment. These devices also feature built-in soft-start circuitry with only an external timing capacitor required. A shutdown terminal controls both the soft-start circuity and the output stages, providing instantaneous turn off through PWM latch of the SG3525AN with pulsed shutdown, as well as soft-start recycle with longer shutdown commands.

Parametrics

SG3525AN absolute maximum ratings: (1)Vi Supply Voltage: 40 V; (2)VC Collector Supply Voltage: 40 V; (3)IOSC Oscillator Charging Current: 5 mA; (4)Io Output Current, Source or Sink: 500 mA; (5)IR Reference Output Current 50 mA; (6)Ptot Total Power Dissipation at Tamb = 70 °C: 1000 mW; (7)Tj Junction Temperature Range: – 55 to 150 °C; (8)Tstg Storage Temperature Range: – 65 to 150 °C.

Features

SG3525AN features: (1) 8 to 35 v operation ; (2) 5.1 v reference trimmed to ± 1 % ; (3) 100 hz to 500 khz oscillator range ; (4) separate oscillator sync terminal ; (5) adjustable deadtime control ; (6) internal soft-start ; (7) pulse-by-pulse shutdown input undervoltage lockout with; (8) hysteresis latching pwm to prevent multiple; (9) pulses dual source/sink output drivers.

Diagrams

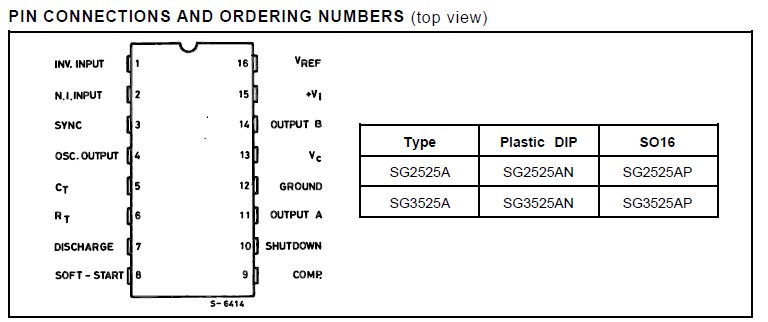

 SG3525AN pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

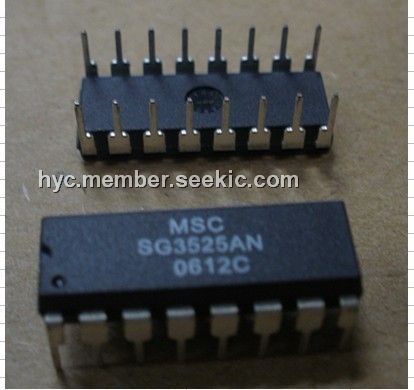

SG3525AN
SG3525AN

STMicroelectronics

Voltage Mode PWM Controllers Voltage Mode w/Sync

Data Sheet

0-1: $0.52
1-10: $0.47
10-100: $0.44
100-250: $0.41
SG3525ANG
SG3525ANG

ON Semiconductor

Voltage Mode PWM Controllers 8-35V PWM

Data Sheet

0-1: $0.70
1-25: $0.56
25-100: $0.49
100-500: $0.38
