Product Summary

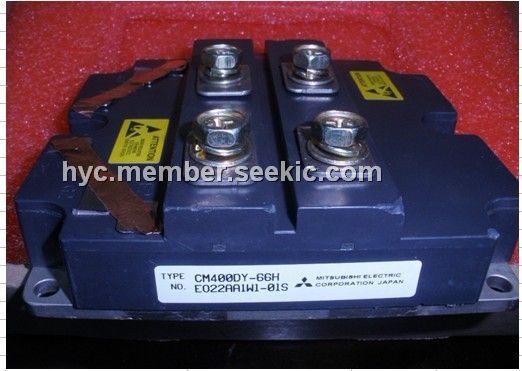

The CM400DY-66H is an IGBT.
Parametrics
CM400DY-66H absolute maximum ratings: (1)VCES Collector-emitter voltage VGE = 0V: 3300V; (2)VGES Gate-emitter voltage VCE = 0V: ±20V; (3)IC Collector current TC = 25°C: 400A; (4)ICM Collector current Pulse (Note 1): 800A; (5)Pulse (Note 1)Pulse (Note 1)Pulse (Note 1): 3400W; (6)Tj Junction temperature: Junction temperature: －40 ~ +150°C.
Features
CM400DY-66H features: (1)IC: 400A; (2)VCES : 3300V; (3)Insulated Type; (4)2-elements in a pack.

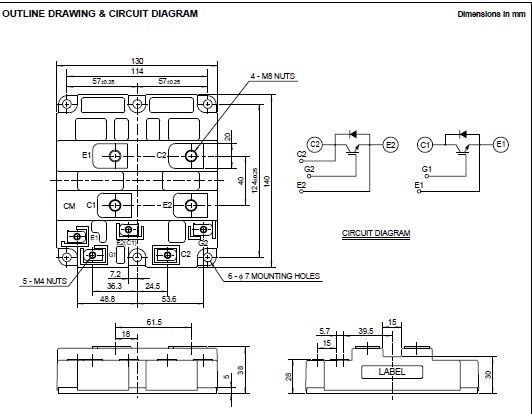

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM400DY-66H |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
