Product Summary

The SN74LVC1G32DBV is a single 2-input positive-OR gate. The SN74LVC1G32DBV is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G32DBV performs the Boolean function Y=A+B or Y=A*B in positive logic.NanoStar. and NanoFree. package technology is a major breakthrough in IC packaging concepts, using the die as the package. The SN74LVC1G32DBV is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs,preventing damaging current backflow through the device when it is powered down.

Parametrics

SN74LVC1G32DBV absolute maximum ratings: (1) Supply voltage range, VCC: 0.5 V to 6.5 V; (2) Input voltage range, VI (see Note 1): 0.5 V to 6.5 V; (3) Voltage range applied to any output in the high-impedance or power-off state, VO (see Note 1): 0.5 V to 6.5 V; (4) Voltage range applied to any output in the high or low state, VO(see Notes 1 and 2): 0.5 V to VCC + 0.5 V; (5) Input clamp current, IIK (VI < 0): 50 mA; (6) Output clamp current, IOK (VO < 0): 50 mA; (7) Continuous output current, IO: ±50 mA; (8) Continuous current through VCC or GND: ±100 mA.

Features

SN74LVC1G32DBV features: (1) Available in the Texas Instruments NanoStarTM and NanoFree. Packages; (2) Supports 5-V VCC Operation; (3) Inputs Accept Voltages to 5.5 V; (4) Max tpd of 3.6 ns at 3.3 V; (5) Low Power Consumption, 10-μA Max ICC; (6) ±24-mA Output Drive at 3.3 V; (7) Ioff Supports Partial-Power-Down Mode Operation; (8) Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II.

Diagrams

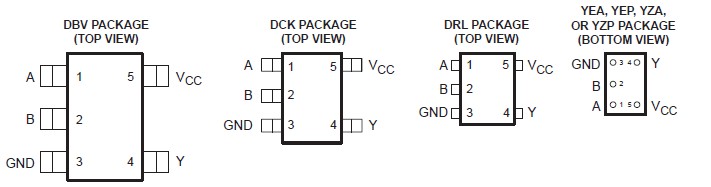

 SN74LVC1G32DBV pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

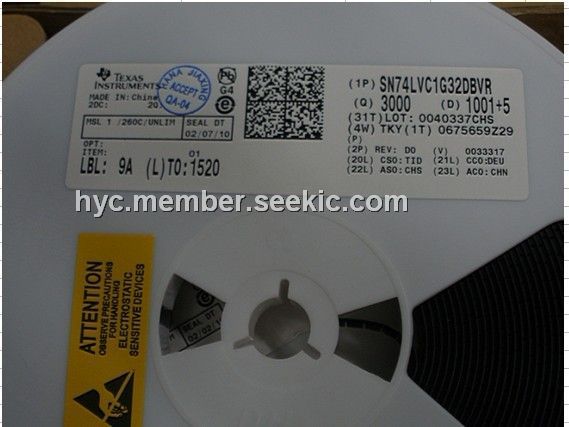

SN74LVC1G32DBVR
SN74LVC1G32DBVR

Texas Instruments

Gates (AND / NAND / OR / NOR) Single 2-Input Pos

Data Sheet

0-1: $0.22
1-25: $0.15
25-100: $0.12
100-250: $0.08
SN74LVC1G32DBVRE4
SN74LVC1G32DBVRE4

Texas Instruments

Gates (AND / NAND / OR / NOR) SNGL 2 Input Pos OR Gate

Data Sheet

0-1: $0.26
1-25: $0.17
25-100: $0.14
100-250: $0.12
SN74LVC1G32DBVT
SN74LVC1G32DBVT

Texas Instruments

Gates (AND / NAND / OR / NOR) Single 2 Input

Data Sheet

0-1: $0.54
1-25: $0.42
25-100: $0.37
100-250: $0.28
SN74LVC1G32DBVRG4
SN74LVC1G32DBVRG4

Texas Instruments

Gates (AND / NAND / OR / NOR) SNGL 2 Input Pos OR Gate

Data Sheet

0-1: $0.26
1-25: $0.17
25-100: $0.14
100-250: $0.12
SN74LVC1G32DBVTG4
SN74LVC1G32DBVTG4

Texas Instruments

Gates (AND / NAND / OR / NOR) SNGL 2 Input Pos OR Gate

Data Sheet

0-1: $0.45
1-25: $0.35
25-100: $0.31
100-250: $0.27
SN74LVC1G32DBVTE4
SN74LVC1G32DBVTE4

Texas Instruments

Gates (AND / NAND / OR / NOR) SNGL 2 Input Pos OR Gate

Data Sheet

0-1: $0.45
1-25: $0.35
25-100: $0.31
100-250: $0.27
