Product Summary

The VI-261-EU/F2 is a battery charger current source module.The VI-261-EU/F2 combines Vicor industry standard package with the flexibility of a power converter whose output voltage and output current may be independently set. The VI-261-EU/F2 allow the user to independently program a constant output current and a maximum float voltage. The float voltage is the point at which the VI-261-EU/F2 transitions from constant current to constant voltage. These features make the BatMod an ideal candidate for battery charging and other applications which require a controlled current source. The VI-261-EU/F2 is also available in booster versions that enable the designer to create systems capable of multiple kilowatts of output power.
.

Parametrics

VI-261-EU/F2 absolute maximum ratings: (1)Current Control Input: 1V to 5V, Zero to max. current; (2)Current Monitor Output: 1V to 5V, Zero to full load; (3)Voltage Control Input: 0V to 2.5V, Zero to FS output; (4)Output Voltage Setpoint Trimmable +10%, -25%: 15V, 30V, 60V +/-1%, 12V, 24V, 48V Output Respectively; (5)Dynamic Characteristics: V Mode: 300 μsec typ. I Mode: 250 μsec typ. VNOM for 50-100% load changes

Features

VI-261-EU/F2 features: (1)Programmable Output Current; (2)Booster Versions Available; (3)Size: 4.6 x 2.4 x 0.5 (116,8 x 61,0 x 12,7); (4)UL, CSA, TÜV; (5)Compatible with All Major Battery Types; (6)Inputs: 48, 150, 300Vdc; (7)Outputs: 12, 24, 48Vdc Nom.; (8)Analog Current Monitor; (9)Analog Overvoltage Adjust; (10)CE Marked.

Diagrams

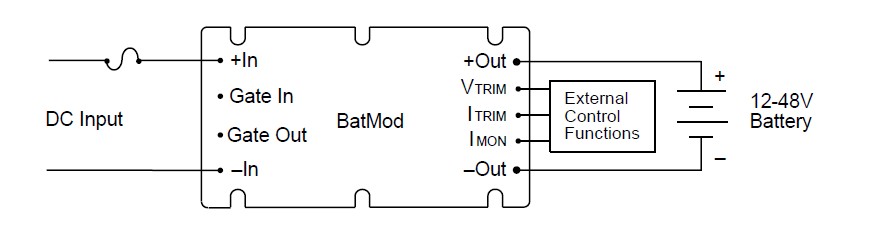

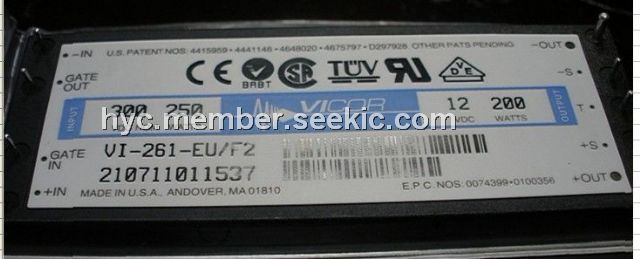

 VI-261-EU/F2 pin conection
