Product Summary

The SN74LVC1G32DBVR is a single 2-input positive-OR gate. The SN74LVC1G32DBVR is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G32DBVR performs the Boolean function Y = A+B or Y =A*B in positive logic. NanoStarTM and NanoFreeTM package technology is a major breakthrough in IC packaging concepts, using the die as the package. The SN74LVC1G32DBVR is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Parametrics

SN74LVC1G32DBVR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 6.5 V; (2)Input voltage range, VI (see Note 1): -0.5 V to 6.5 V; (3)Voltage range applied to any output in the high-impedance or power-off state, VO (see Note 1): -0.5 V to 6.5 V; (4)Voltage range applied to any output in the high or low state, VO (see Notes 1 and 2): -0.5 V to VCC + 0.5 V; (5)Input clamp current, IIK (VI < 0): -50 mA; (6)Output clamp current, IOK (VO < 0): —50 mA; (7)Continuous output current, IO: ±50 mA; (8)Continuous current through VCC or GND: ±100 mA .

Features

SN74LVC1G32DBVR features: (1)Available in the Texas Instruments NanoStarTM and NanoFreeTM Packages; (2)Supports 5-V VCC Operation; (3)Inputs Accept Voltages to 5.5 V; (4)Max tpd of 3.6 ns at 3.3 V; (5)Low Power Consumption, 10-μA Max ICC; (6)±24-mA Output Drive at 3.3 V; (7)Ioff Supports Partial-Power-Down Mode Operation; (8)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II.

Diagrams

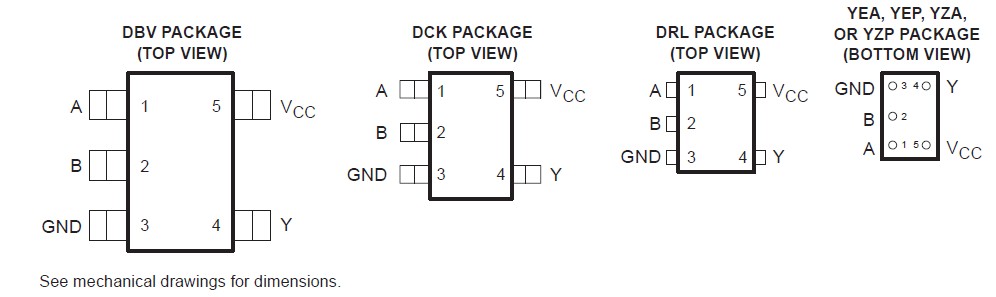

 SN74LVC1G32DBVR pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74LVC1G32DBVR
SN74LVC1G32DBVR

Texas Instruments

Gates (AND / NAND / OR / NOR) Single 2-Input Pos

Data Sheet

0-1: $0.22
1-25: $0.15
25-100: $0.12
100-250: $0.08
SN74LVC1G32DBVRE4
SN74LVC1G32DBVRE4

Texas Instruments

Gates (AND / NAND / OR / NOR) SNGL 2 Input Pos OR Gate

Data Sheet

0-1: $0.26
1-25: $0.17
25-100: $0.14
100-250: $0.12
SN74LVC1G32DBVRG4
SN74LVC1G32DBVRG4

Texas Instruments

Gates (AND / NAND / OR / NOR) SNGL 2 Input Pos OR Gate

Data Sheet

0-1: $0.26
1-25: $0.17
25-100: $0.14
100-250: $0.12
