Product Summary

The BAV70W is a surface mount switching diode.

Parametrics

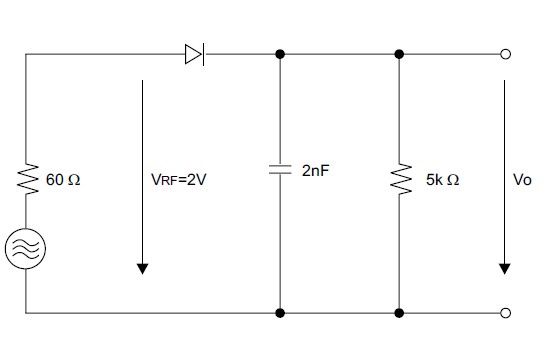

BAV70W absolute maximum ratings: (1)Reverse Voltage VR: 75V; (2)Peak Reverse Voltage VRM: 100 V; (3)Rectified Current (Average), Half Wave Rectification with Resistive Load and f >=50 Hz IO: 150mA; (4)Peak Forward Surge Current, 8.3ms single half sine-wave superimposed on rated load (JEDEC method)IFSM: 2.0 A; (5)Power Dissipation Derate Above 25OC PTOT: 200mW; (6)Maximum Forward Voltage at IF=10mA VF: 1.0 V; (7)Maximum DC Reverse Current at Rated DC Blocking Voltage TJ= 25OC IR: 2.5 μA; (8)Typical Junction Capacitance( Notes1) CJ: 4.0 pF; (9)Maximum Reverse Recovery (Notes2) TRR: 4.0ns.

Features

BAV70W features: (1)Fast switching speed.; (2)Surface mount package Ideally Suited for Automatic insertion; (3)Electrically Identical to Standard JEDEC; (4)High Conductance.
