Product Summary

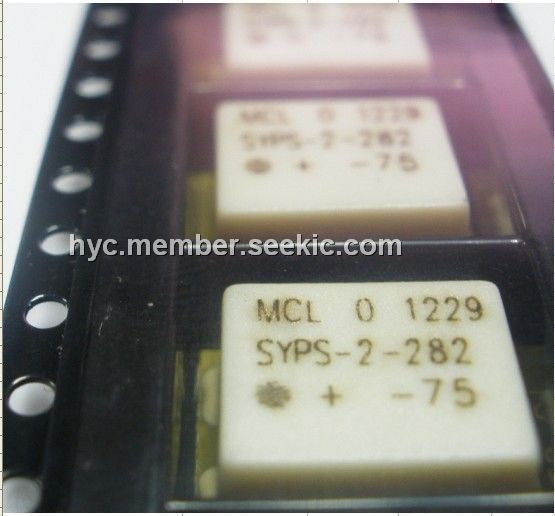

The SYPS-2-282-75+ is a power splitter/combiner.
Parametrics
SYPS-2-282-75+ absolute maximum ratings: (1)Operating Temperature: -40°C to 85°C; (2)Storage Temperature: -55°C to 100°C; (3)Power Input (as a splitter): 1W max.; (4)Internal Dissipation: power splitter/combiner0.15W max.
Features
SYPS-2-282-75+ features: (1)low insertion loss 1.0 dB typ.; (2)wide frequency band, 20 to 1200 MHz, usable 5 to 1250 MHz; (3)low amplitude unbalance, 0.1 dB typ.

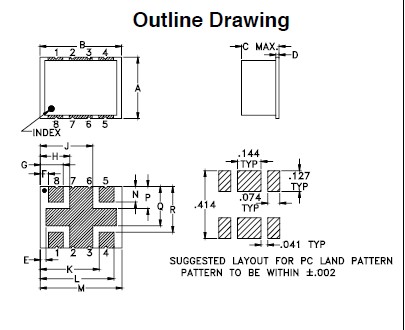

Diagrams
